Get Started

Integrating RWDPay Staging API into your app or website can begin as soon as you register merchant with us, and requires three steps:

  1. Register as Merchant with us. Please contact us at [email protected] to get your own merchant account .
  2. Configure account setting such as IP whitelist, payment restriction, return URL and status URL.
  3. Obtain your API keys and secret so RWDPay Staging API can authenticate your integration’s API requests.
  4. Setup your merchant side return callback and status callback handling.
  5. Test API request to confirm everything is up and running



API Overview

RWDPay Staging Connector is a convenient payment system for merchants which provides Merchants who require credit card or internet banking payment option for their online store on a single platform

The RWDPay Staging API is organized around REST. Our API has predictable resource-oriented URLs, accepts form-encoded request bodies, returns JSON-encoded responses, and uses standard HTTP response codes, authentication, and verbs.

This document is intended for software developers with knowledge and authority to integrate third party payment solutions on a Merchant's e-commerce platform. Since RWDPay Staging Connector does not require any software installation the required skills is determined by the technologies used on the Merchant’s website and the necessity to integrate the Payment Gateway with back end systems.



RWDPay Staging API Overview - Connector


For the scope of a typical transaction, the scope begins from the confirmed checkout on Merchant side. Merchant website is in a state where all relevant information is captured and ready to present the payment transaction.

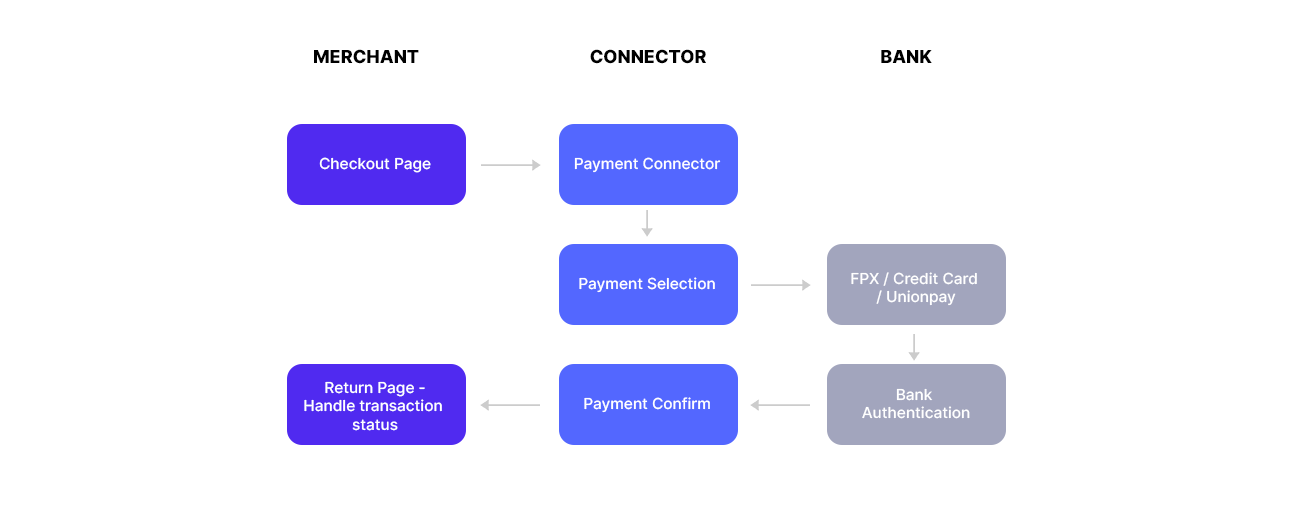

A typical transaction flow is illustrated in the diagram below:





RWDPay Staging API Overview - Status Callback


The merchant is notified of a change in the status of the order (including any payment) by an asynchronous call to an Status URL that is configured in his account. It only notifies that the status of order or payment(s) has changed. This change might or might not be relevant for the merchant.

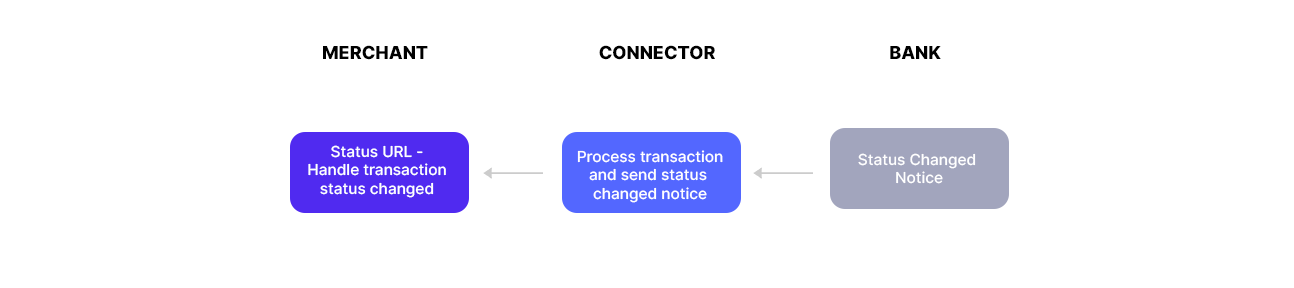

A typical status flow is illustrated in the diagram below:






RWDPay Staging API Overview - Query


Merchant side can calls the Query API with order ID to retrieve transaction details with status information. This action will also trigger the Status Callback , it might cause double trigger to merchant site.

.

Possible scenario for using Query API.

  1. Merchant side prefer to handle transaction status changes manually
  2. To avoid Status Callback handling failure.

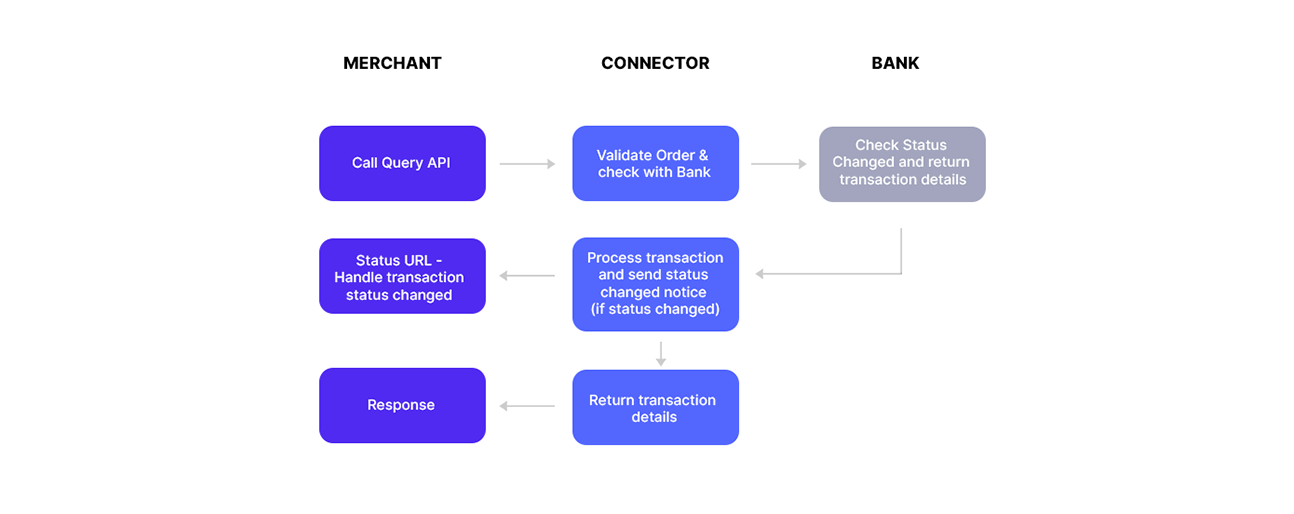

A typical Query flow is illustrated in the diagram below:







API Integration - connector

To connect to RWDPay Staging Connector, you need to make a POST call to the following url ( Please note that it will redirect to payment gateway page ) :
https://stg-api.rwdpay.com/api/payment/connector


POST PARAMETERS

Field Type Mandatory Description
tx_amt Decimal ( 10,2 ) Y Payment total amount for the transaction, e.g. 10.50, 1000.15.
Do not use “,”
tx_orderID String Y A unique transaction reference generated by merchant.
tx_currency Character (3) N Transaction Currency ( CNY , MYR or USD ). Default is MYR. Please note that staging only acceept MYR.
tx_name String Y Buyer name.
tx_email String Y Buyer email address.
tx_ref1 String N Transaction reference field 1. This value will be sent to merchant without any changing.
tx_ref2 String N Transaction reference field 2. This value will be sent to merchant without any changing.
tx_mercID String Y Merchant API Key retrieve from merchant dashboard setting.
tx_hashvalue String Y Transaction Hash Value - Refer to "Resource - Hash Value Algorithm".
tx_sub_mercKey String N Transaction key for sub merchant transaction record grouping.
return_url String N The merchant page where the user will be redirected to upon end of transaction. This merchant page will received transaction response.
System will use merchant dashboard setting Return URL as default.
This page may not be called if user simply closed the browser. System will send another callback to status URL after few minutes.
status_url String N Where transaction status changed notification sent to via the backend.
System will use merchant dashboard setting Status URL as default.
tx_lang Character (2) N The language will be shown on the payment window. (CN , EN) . By default is EN.


API Integration - Query

Merchant System calls the Query function with the Merchant’s order ID to retrieve the transaction details.

To check transaction details with RWDPay Staging Query, you need to make a POST call to the following url :
https://stg-api.rwdpay.com/api/payment/query


POST PARAMETERS

Field Type Mandatory Description
tx_orderID String Y A unique transaction reference generated by merchant.
tx_mercID String Y Merchant API Key retrieve from merchant dashboard setting.
tx_hashvalue String Y Transaction Query Hash Value - Refer to "Resource - Query Hash Value Algorithm".


API Integration - Response

Connector response , Query response , Status response - are in the same format.


RESPONSE PARAMETERS

Field Type Description
tx_ref String A transaction reference code generated by Connector
tx_hashvalue String Transaction Response Hash Value generated by Connector - Refer to "Resource - Response Hash Value Algorithm".
tx_date Timestamp Transaction created date.
tx_amt Decimal ( 10,2 ) Payment total amount for the transaction
tx_orderID String A unique transaction reference generated by merchant.
tx_currency Character (3) Transaction Currency ( CNY , MYR or USD ).
tx_name String Buyer name.
tx_email String Buyer email address.
tx_ref1 String Transaction reference field 1. This value will be sent to merchant without any changing.
tx_ref2 String Transaction reference field 2. This value will be sent to merchant without any changing.
tx_mercID String Merchant API Key retrieve from merchant dashboard setting.
tx_sub_mercKey String Transaction key for sub merchant transaction record grouping.
tx_lang Character (2) The language will be shown on the payment window. (CN , EN) . By default is EN.
tx_status Character (1) Transaction status. Please refer to "Resource - Transaction Status Code"
tx_remark String The transaction remark return from Payment Gateway
tx_statusChanged boolean A response to notify merchant site if the transaction status has been changed.

Example

Connector API Example


{
  "tx_amt": "1",
  "tx_orderID": "60018c739d83e",
  "tx_currency": "MYR",
  "tx_hashvalue": "e288c58b85fa11f25264c37db0277e5c9837faa3",
  "tx_name": "test",
  "tx_email": "[email protected]",
  "tx_mercID": "key_5fffd2c060e2c",
  "tx_ref1": "ref1 value",
  "tx_ref2": "ref2 value",
  "tx_lang": "CN",
  "tx_sub_mercKey": "SUBKEY",
  "return_url": "http://api.mydomain.test/api/return",
  "status_url": "http://api.mydomain.test/api/status"
}


Query API Example


{
  "tx_orderID": "60018c739d83e",
  "tx_hashvalue": "e288c58b85fa11f25264c37db0277e5c9837faa3",
  "tx_mercID": "key_5fffd2c060e2c",
}


Query API Example


{
  "tx_amt": "1",
  "tx_orderID": "60018c739d83e",
  "tx_currency": "MYR",
  "tx_hashvalue": "e288c58b85fa11f25264c37db0277e5c9837faa3",
  "tx_name": "test",
  "tx_email": "[email protected]",
  "tx_mercID": "key_5fffd2c060e2c",
  "tx_ref1": "ref1 value",
  "tx_ref2": "ref2 value",
  "tx_lang": "CN",
  "tx_sub_mercKey": "SUBKEY",
  "return_url": "http://api.mydomain.test/api/return",
  "status_url": "http://api.mydomain.test/api/status"
}


Connector, Query & Status Response Example - all response are in the same format.


{
  "tx_ref": "ref_60018d5f414d1",
  "tx_hashvalue": "8c9d853a2db975558442db028ad0ef7e8e2137ac",
  "tx_date": "2021-01-15 20:41:03",
  "tx_amt": "1.00",
  "tx_orderID": "60018d5e75c59",
  "tx_name": "test",
  "tx_email": "[email protected]",
  "tx_ref1": "ref1 value",
  "tx_ref2": "ref2 value",
  "tx_mercID": "key_5fffd2c060e2c",
  "tx_sub_mercKey\t": "SUBKEY",
  "tx_status": "f",
  "tx_lang": "CN",
  "tx_currency": "MYR",
  "tx_remark": "Transaction declined. Payer has halted payment",
  "tx_statusChanged": "0",
}

Resource

Hash Value Algorithm

Hash value = SHA1 Encryption values of API SECRET, API KEY, Order ID, Order Amount

sha1( $API_Secret . $API_Key . $orderID . $amount)
e.g. sha1(52c9846997b466e2ad544c5d44d19388537472cfa4e5e9e60c4e37d1df00c013key_5fffd2c060e2c5ffff192672491.0)


Query Hash Value Algorithm

Hash value = SHA1 Encryption values of API SECRET, API KEY, Order ID

sha1( $API_Secret . $API_Key . $orderID)
e.g. sha1(52c9846997b466e2ad544c5d44d19388537472cfa4e5e9e60c4e37d1df00c013key_5fffd2c060e2c5ffff19267249)


Response Hash Value Algorithm

Response Hash value = SHA1 Encryption values of API SECRET, API KEY, Order ID, Order Amount, Response Transaction Referrence, Response Transaction Status Code

sha1( $API_Secret . $API_Key . $orderID . $amount . $responseRef . $responseStatusCode)
e.g. sha1(52c9846997b466e2ad544c5d44d19388537472cfa4e5e9e60c4e37d1df00c013key_5fffd2c060e2c5ffff192672491.05e9e60c4e37d1dp)



Transaction Status Code

Error Code Meaning
p Pending
i Processing
s Success
f Failed
e Expired


Transaction Language

Code Description
CN Chinese
EN English


Transaction Currency

Code Meaning
MYR Malaysia Ringgit
CNY China Yuan
USD USD Dollar
